Features

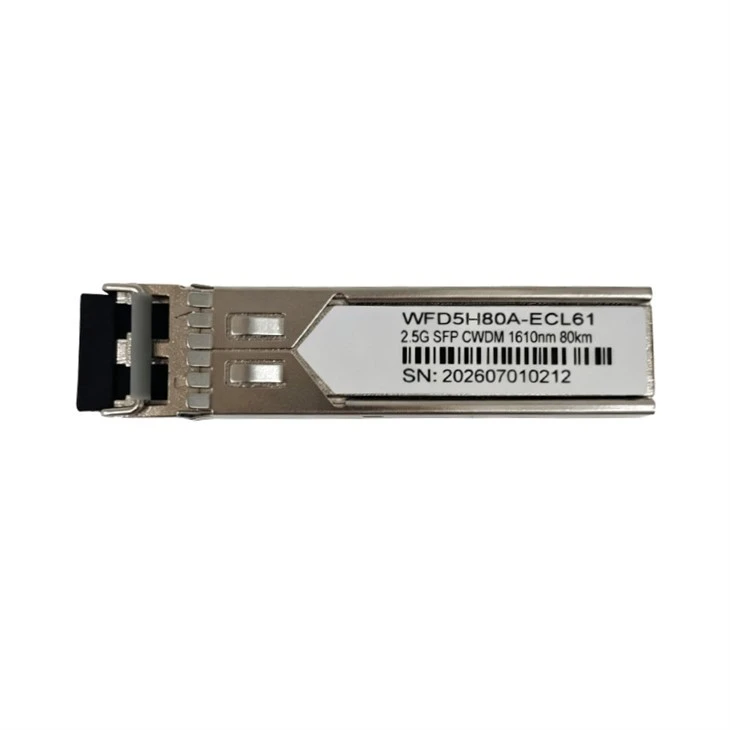

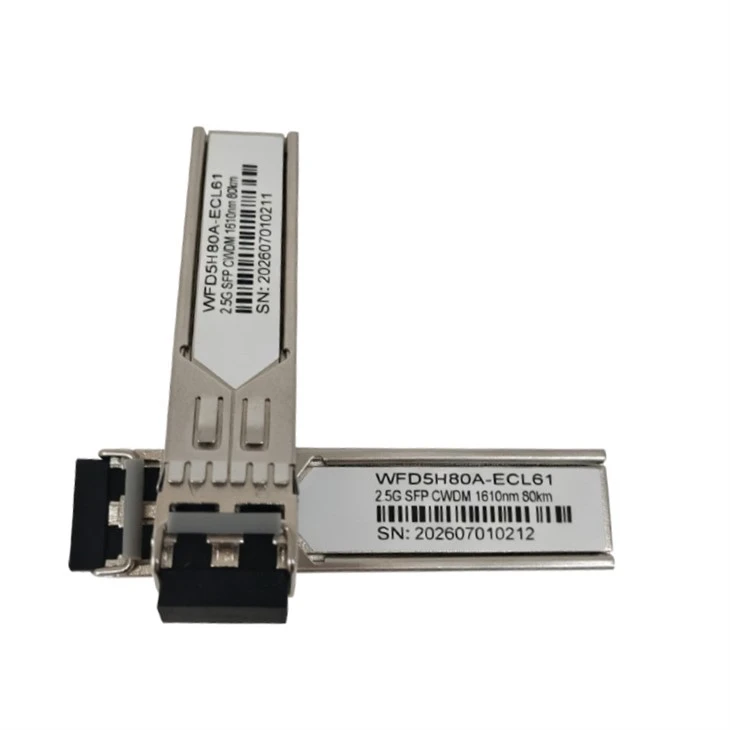

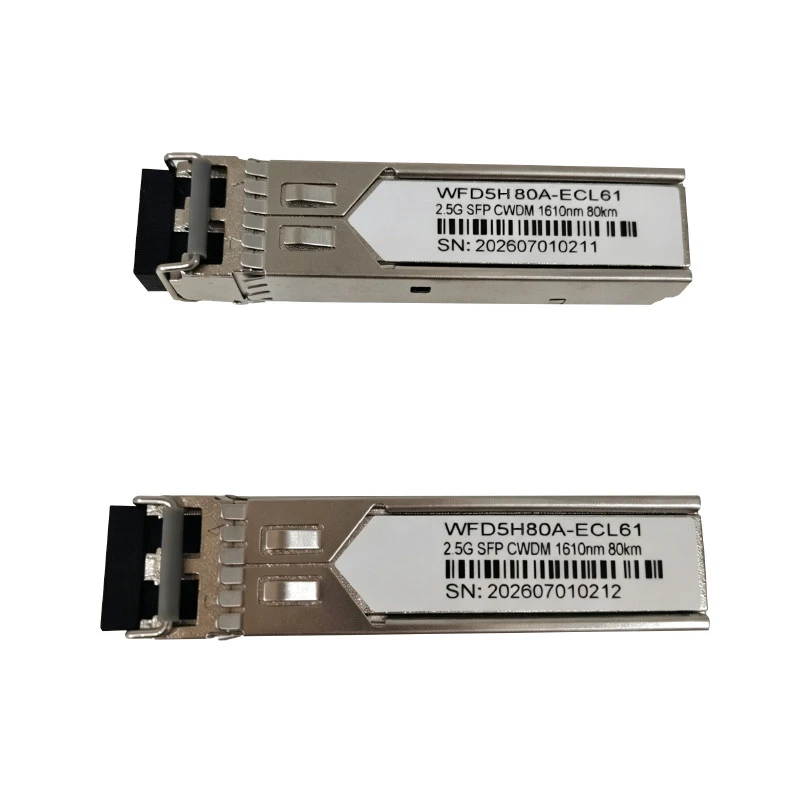

WFD5H80A-ECL61

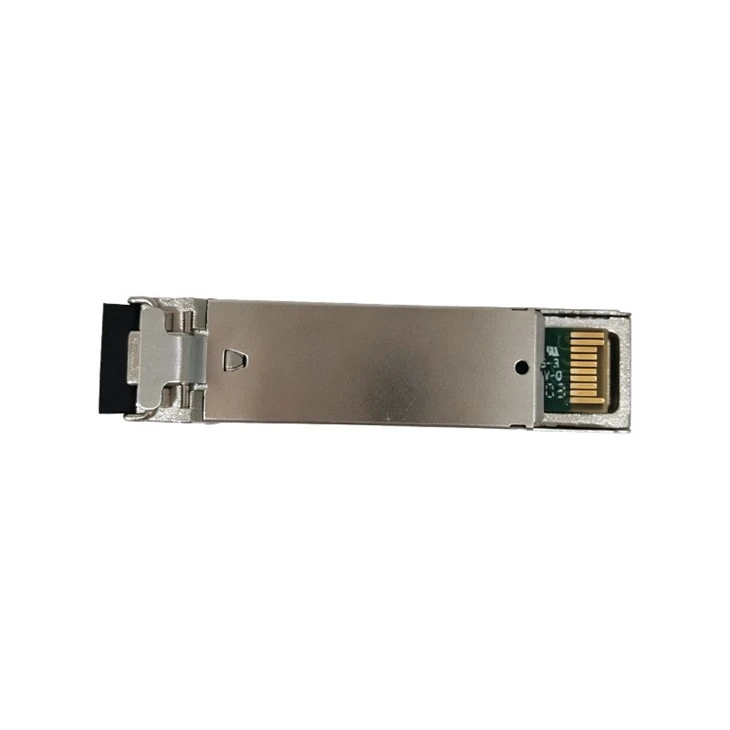

The CWDM SFP 2.5G 80km LC SMF transceiver is a high-performance optical module designed for long-haul transmission over standard single-mode fiber. Operating at 2.5Gbps with 80km reach, it is ideal for SONET OC-48, SDH STM-16, and Gigabit Ethernet applications. Leveraging CWDM technology with 18 wavelengths from 1270nm to 1610nm, it maximizes fiber capacity by enabling multiple channels over a single fiber. Built with a CWDM DFB laser and APD receiver, it delivers reliable signal integrity across the full 80km span. Fully SFP MSA compliant with LC interface, hot-swappable, and featuring real-time DDM for proactive maintenance, this module offers carrier-grade reliability for diverse deployment environments.

1. Supports up to 2.5Gb/s data rates

The CWDM SFP 2.5G 80km LC SMF transceiver delivers 2.5Gbps throughput that easily handles heavy traffic loads like video streaming and large data backups. This speed keeps your network running smoothly during peak hours without delays or bottlenecks. It gives you the capacity you need for today's applications and room to grow for tomorrow's demands.

2. 8-Wavelength CWDM DFB laser from 1470nm to 1610nm with step 20nm and APD photodiode

The CWDM SFP 2.5G 80km LC SMF transceiver equipped with an 8-wavelength CWDM DFB laser covering 1470nm to 1610nm in 20nm steps, this module gives you plenty of wavelength choices for your network. This flexibility lets you run multiple channels over the same fiber, getting more value from your existing cabling. The built-in APD photodiode provides excellent sensitivity, keeping your signal clean and strong over long distances. Together, these components deliver a cost-effective solution that makes the most of your fiber infrastructure.

3. Compatible with RoHS-6

The CWDM SFP 2.5G 80km LC SMF transceiver uses environmentally friendly materials that fully comply with RoHS-6 requirements. This means you can meet global environmental regulations without extra effort or paperwork. By choosing this module, you are supporting sustainable practices and reducing your environmental impact. It is a responsible choice that delivers reliable performance while caring for the planet.

Parameter

Absolute Maximum Ratings
Parameter	Symbol	Min.			Max.			Unit			Note
Storage Temperature	Tst	-40			85			°C
Input Voltage	Vin	GND			Vcc			V
Power Supply Voltage	Vcc-Vee	-0.5			+3.6			V
Recommended Operating Conditions
Parameter	Symbol	Min.		Typical			Max.			Unit	Note
Power Supply Voltage	Vcc	3.135		3.3			3.465			V	-
Operating Case Temperature	Tc	0		-			70			°C	-
Data Rate	DR	-		2.5			-			Gbps	-
Total Supply Current	-	-		-			300			mA	-
Electrical-Optical Specification
Transmitter
Parameter	Symbol	Min.	Typ.			Max.			Unit		Note
Optical Central Wavelength	l	lp-6.5	lp			lp+6.5			nm		1
Optical Spectral Width (-20dB)	Dl					1			nm
Side Mode Suppression Ratio	SMSR	30							dB
Average Optical Output Power	Po	-2				+3			dBm		2
Extinction Ratio	Er	9							dB
Average Power of disable Transmitter						-45			dBm
Output Eye	Compliant with ITU-T G.957										3
Optical- Electrical Specification
Receiver
Parameter	Symbol	Min.	Typ.			Max.			Unit		Note
Operate Wavelength	l	1260				1610			nm
Sensitivity	Pr					-28			dBm		4
Saturation	Ps	-9							dBm		4
LOS De-assert Level						-29			dBm
LOS Assert Level		-45							dBm
LOS Hysteresis		0.5							dB

Note:

1. λp =The peak wavelength (1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610)

2. The optical power is Coupled into SMF.

3. Measured with a PRBS 2²³-1 test pattern @2.5Gbps.

4. Measured with a PRBS 2²³-1 test pattern @2.5Gbps, BER ≤1×10-12

Electrical Characteristics
Parameter		Symbol	Min.	Typical	Max.	Unit	Note
MOD_DEF(0:2)		VH	2		Vcc	V
MOD_DEF(0:2)		VL	0		0.8	V
Transmitter
Input Differential Impedance		Zin	90	100	110	Ω	-
Data Input Swing Differential		Vin	200		2400	mV
TX Disable	Disable		2.0		Vcc	V
TX Disable	Enable		0		0.8	V
TX Fault	Fault		2.0		Vcc	V
TX Fault	Normal		0		0.8	V
Receiver
Output Differential Impedance		Zout	90	100	110	Ω
Data Output Swing Differential		Vout	700		1000	mV
LOS		High	2.0		Vcc	V
LOS		Low	0		0.8	V

Diagnostic Monitor Accuracy

Parameter	Unit	Accuracy	Range	Calibration
Tx Optical Power	dB	±3	Po: -Pomin~Pomax dBm, Recommended operation conditions	Internal
Rx Optical Power	dB	±3	Pi: Ps~Pr dBm, Recommended operation conditions	Internal
Bias Current	%	±10	Id: 1-100mA, Recommended operating conditions	Internal
Power Supply Voltage	%	±3	Recommended operating conditions	Internal
Internal Temperature	℃	±3	Recommended operating conditions	Internal

Order Information

Part Number	Product Description
WFD5H80A-ECL47	CWDM 1470 DFB, 2.5Gbps, LC, 80km, 0℃ ~ +70℃, with DDM
WFD5H80A-ECL49	CWDM 1490 DFB, 2.5Gbps, LC, 80km, 0℃ ~ +70℃, with DDM
WFD5H80A-ECL51	CWDM 1510 DFB, 2.5Gbps, LC, 80km, 0℃ ~ +70℃, with DDM
WFD5H80A-ECL53	CWDM 1530 DFB, 2.5Gbps, LC, 80km, 0℃ ~ +70℃, with DDM
WFD5H80A-ECL55	CWDM 1550 DFB, 2.5Gbps, LC, 80km, 0℃ ~ +70℃, with DDM
WFD5H80A-ECL57	CWDM 1570 DFB, 2.5Gbps, LC, 80km, 0℃ ~ +70℃, with DDM
WFD5H80A-ECL59	CWDM 1590 DFB, 2.5Gbps, LC, 80km, 0℃ ~ +70℃, with DDM
WFD5H80A-ECL61	CWDM 1610 DFB, 2.5Gbps, LC, 80km, 0℃ ~ +70℃, with DDM
