Fiber 5 GHZ

Fiber 5 GHZ

Product Highlights
● Wireless AC & Gigabit Ethernet
● Dual-band Wi-Fi for Seamless Performance
● FP Fiber WAN Port
Category
Wi-Fi 5 Fiber Router

Send Inquiry
Features
Specification
FAQ

Features

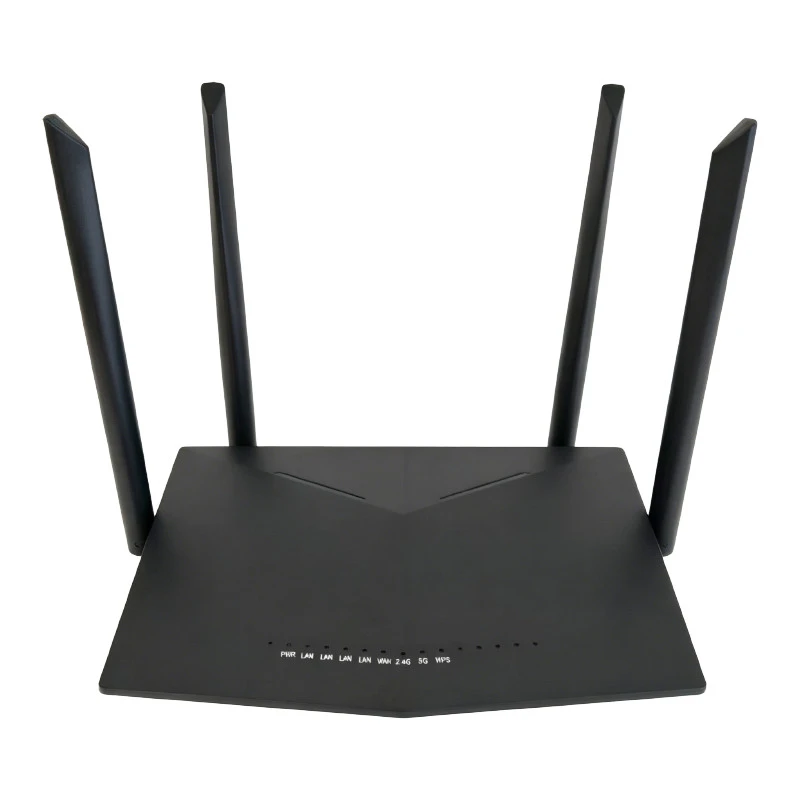

DRG-C5700TR

1. Fast and Reliable Home Network

The fiber 5 ghz AC1200 Wi-Fi Gigabit SFP Router upgrades your network to bring you Wi-Fi speed of up to 1200Mbps, so you can meet the ever-greater demand for multimedia applications. Enjoy streaming media, Internet phone calls, online gaming, and content-rich web surfing throughout your home or office. In addition,10/100/1000 Gigabit Ethernet ports give you solid, dependable wired performance for devices such as NAS, media centers and gaming consoles. Its built-in easy-to-use Quality of Service (QoS) engine allows you to prioritize important traffic to ensure that your favorite applications are receiving optimal bandwidth.

2. Easy to Set Up and Secure

Sharing your Internet connection doesn't have to be a complicated process, just open a web browser to access user-friendly graphical web interface of this router. Implement WPA/WPA2/WPA3 wireless security in minutes with the wireless network setup guide. In addition, the built-in firewall protects against malicious attacks from the Internet,and access control features allow you to restrict access to your network, giving you greater control over network users.

3. Robust TR-069 Remote Management

The fiber 5 ghz AC1200 Wi-Fi Gigabit SFP Router works with TR-069 standard management specifications, allowing remote management and diagnosis, it supports different data models like TR098 and TR181. This unique feature not only offers users a true "plug-and-play" experience but also reduces deployment complexity, thereby saving operation and maintenance costs.

4. Quality of Service (QoS)

The QoS features on the fiber 5 ghz DRG-C5700TR enable service providers to design QoS policies and prioritize mission-critical services such as IPTV and Internet freely based on their individual service plans. This in turn allows service providers to deliver real multi-play applications to users and increase network efficiency.

5. Mature IPv6 Capability

With supporting IPv4/IPv6 Dual Stack, the fiber 5 ghz DRG-C5700TR helps operators and end users to achieve a future-proof network with smooth evolution.



Parameter





Hardware

Interface

1*10/100/1000Mbps SFP WAN port

4*10/100/1000Mbps RJ-45 LAN ports

Buttons

1*WPS/Rest button

LEDs

Power, WAN,LAN, WLAN, WPS

Antenna

4*5dbi external antennas

WiFi Standards

802.11 a/b/g/n/ac

Frequency

5GHz (5.150GHz ~ 5.30GHz)

2.4GHz (2.4GHz ~ 2.4835GHz)

Maximum Data Speed

5Ghz:867Mbps

2.4Ghz:300Mbps

Output Power

5Ghz:

11a(54M): 11±1.5dBm

11n(20MHz, MCS7): 11±1.5dBm

11n(40MHz, MCS7): 11±1.5dBm

11ac(80MHz, MCS9): 11±1.5dBm

2.4Ghz:

11b/g(11M/54M): 14±1.5dBm

11n(20MHz, MCS7): 14±1.5dBm

11n(40MHz, MCS9): 14 ±1.5dBm

Receive Sensitivity

5Ghz

11a(54M): -71

11n(20MHz, MCS7): -70

11n(40MHz, MCS7): -67

11ac(80MHz, MCS9): -60

2.4Ghz

11b(11M): -86

11g(54M): -72

11n(20MHz, MCS7): -70

11n(40MHz, MCS7): -67

Wireless Security

WPA-PSK

WPA2-PSK

WPA/WPA2-PSK

WPA3-SAE

WPA3-SAE/WPA2-PSK

Software

Networking

PPPOE/Dynamic IP/Static IP WAN mode

IPv4/IPv6 Dual Stack

NAT

Port forwarding

UPnP IGD with NAT traversal capability

Static routing

Dynamic DNS relay

DHCP client/server

IGMP and MLD snooping/proxy

QoS

Flexible packet classification

Wi-Fi Multimedia (WMM)

Security

Stateful Packet Inspection (SPI)

Denial of Service (DoS) prevention

Multiple VPN (IPSec, PPTP,L2TP) passthrough

IP filtering

Management

Web based GUI

WAN Management Protocol (TR-069)

Date/time update from SNTP Internet Time Server

Others

Physical Characteristics

Net weight: 300g

Dimensions(LxWxH): 200x150x35 mm

Power

Input: 100 ~ 240 V

Output: 12 V / 1.0 A

Environmental

Characteristics

Operating temperature: 0 ° C~ 40° C (32° F ~ 104° F)

Humidity: 5% ~ 95% (non-condensing)

Certification

CE

Rohs
