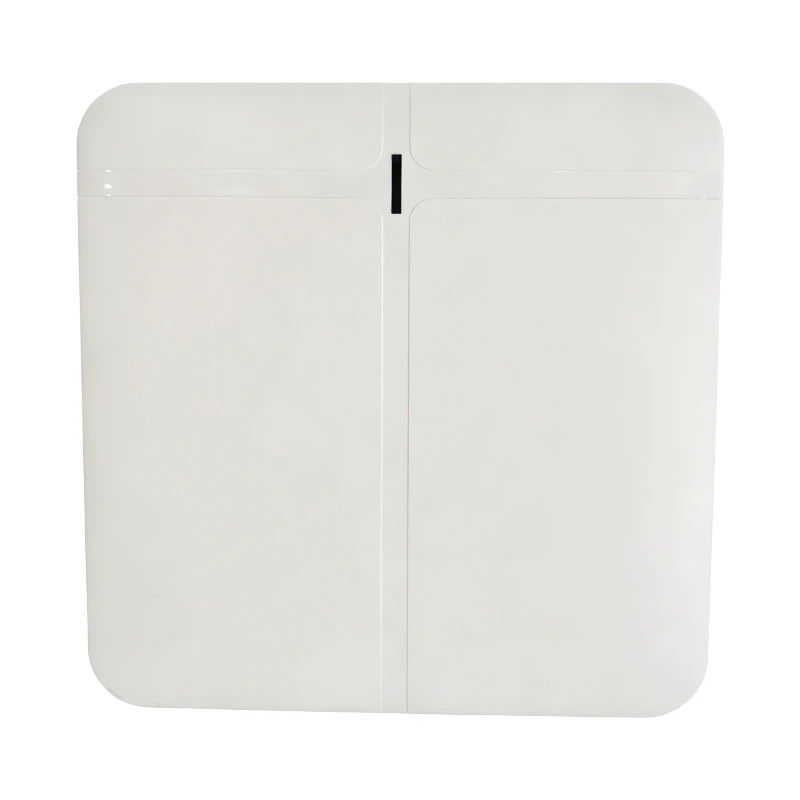

Unifi Adopt Access Point

Unifi Adopt Access Point

Product Highlights
● Fabulous Wi-Fi6 Performance
● High-Density Client Support
● Simple Installation & Centralized Management
Category
Wi-Fi6 Ceiling Access Point

Send Inquiry
Features
Specification
FAQ

Features





DAP-X2500TR

1. Smart Roaming Experience

The DAP-X2500TR unifi adopt access point support 802.11k/v/r smart roaming technology, clients can seamlessly switch between APs without any interruption. It even supports roaming between different Wi-Fi channel, this ensures consistent connectivity for voice-over-Wi-Fi, video calls, and mobile applications across large buildings.

2. Enterprise-Grade Reliability

The DAP-X2500TR unifi adopt access point has robust hardware and rugged housing which are rated for continuous operation in demanding environment. With operating temperature from -20℃to 50℃,it has enterprise grade reliability with uncompromising performance.

3. Elegant & Discreet Design

The DAP-X2500TR elegant design blends seamlessly in to any ceiling environment without appearing out of place. And LED indicators can be disabled for environments that require minimal visual distraction, such as hotels or conference rooms.

4. POE Powered & Energy Efficient

The DAP-X2500TR unifi adopt access point complies with 802.3af/at POE protocol, only requiring a single Ethernet cable for both data and power, its intelligent power-saving mechanism could reduce energy consumption during low-traffic periods. It also works with passive POE, this flexibility makes it suitable for most environment.

5. Intelligent Traffic Optimization

The DAP-X2500TR has built-in traffic shaping mechanism, once received configuration from AC, it can automatically prioritizes critical applications such as VOIP and video stream. And it dynamically adjusts bandwidth allocation to maintain optimal performance during peak usage period according to its QOS policy.

6. Enhanced Security & Guest Access

The DAP-X2500TR supports WPA3 encryption, which enhanced Wi-Fi security significantly, user don't need worry about their private data leakage. And its guest SSID mechanism not only provide guests enjoy convenient access to the internet, but also protect the host's data from being hacked.

7. Authentication Portal Function

The DAP-X2500TR unifi adopt access point supports captive portal function, the authentication login page will be popped out once client connected its SSID, it makes the DAP-X2500TR as hot spot which is suitable for ISP company.



Parameter





Hardware

Interface

1*10/100/1000Mbps RJ-45 WAN port

1*10/100/1000Mbps RJ-45 LAN ports

1*DC Jack

Buttons

1*Rest button

LEDs

Power&WiFi

POE

EEE802.3af/at(maximum 30W)/passive POE

Software

WAN

Dynamic IP/Static IP WAN mode

IGMP and MLD snooping

LAN

802.1p,802.1q,802.1x for wired LAN

802.11a/b/g/n/ac/ax for Wi-Fi

L2/L3 roaming

Automatically discover the AC which can be accessed

Safety

802.1x authentication, PSK authentication, Portal authentication

AES,TKIP encryption

IP/MAC address filtering

Stateful Packet Inspection (SPI)

Denial of Service (DoS) prevention

Multiple VPN (IPSec, PPTP,L2TP) passthrough

Software

RF Management

Transmission Power configuration automatically / manually

Working Channel configuration automatically / manually

Wireless RF interference monitoring and evasion

Management

Web based GUI

Date/time update from SNTP Internet Time Server

CLI

Others

Physical Characteristics

Net weight: 200g

Dimensions(LxWxH): 168*168*28 mm

Power

802.3af/at POE

Passive POE

DC 12V/1A

Environmental

Characteristics

Operating temperature: 0 ° C~ 40° C (32° F ~ 104° F )

Humidity: 5% ~ 95% (non-condensing)

Certification

CE

Rohs
