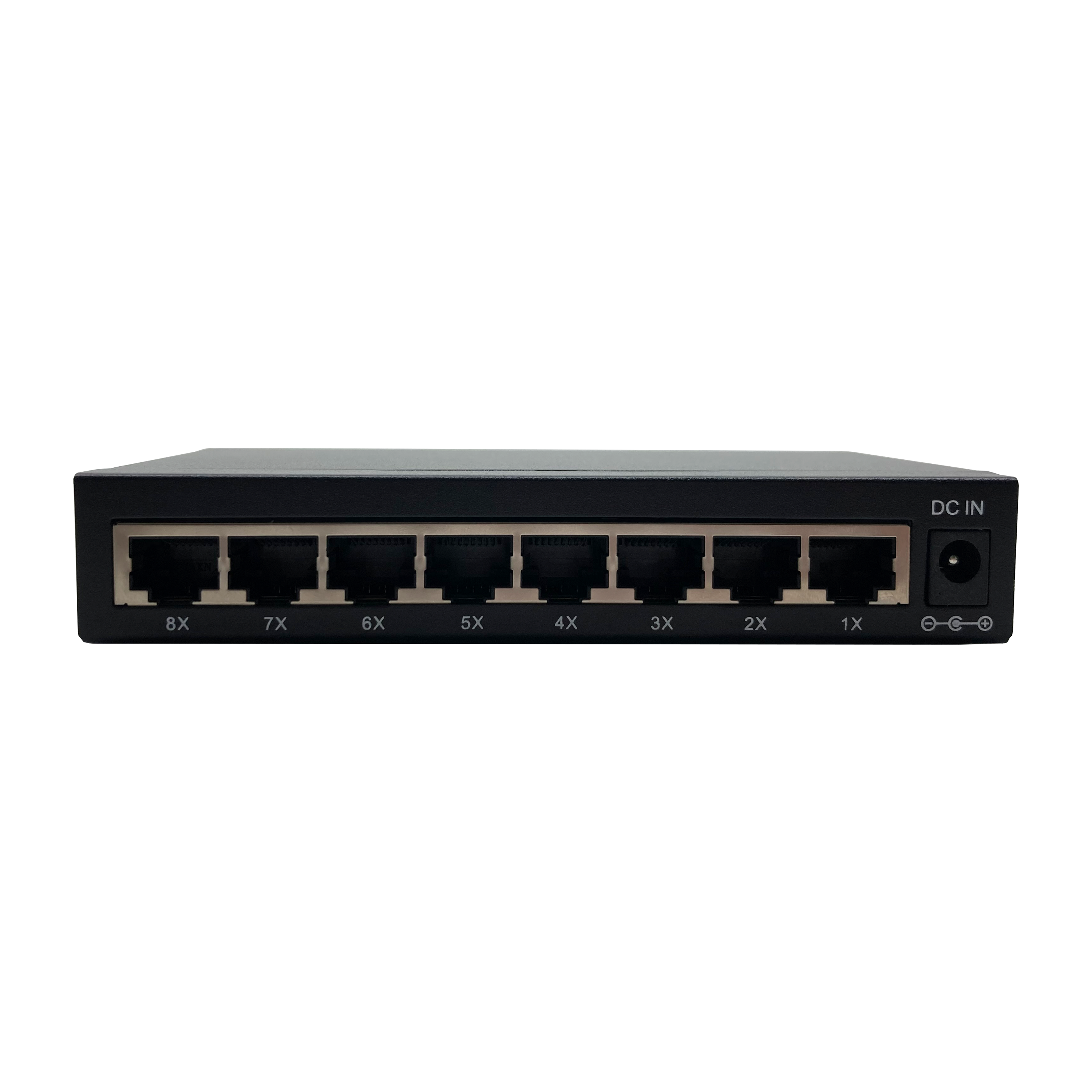

Network Switch

1008GD
8 Ports 1000M Network Switch

●8 10/100/1000Mbps Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX.
●Supports IEEE 802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode.
●Supports MAC address auto-learning and auto-aging.
●Metal housing and desktop design.
●Plug and Play design simplifies installation.
●Fanless design ensures quiet operation.

Model		1008GD
Chipset		RTL8370N-VB-CG
Standards		IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T
Network Media (Cable)		10BASE-T: UTP category3,4, 5 cable (maximum 100m) 100BASE-TX: UTP category 5,5e cable (maximum 100m)
		1000BASE-T: UTP category 5e,6 cable (maximum 100m)
Number of Ports		8 10/100/1000Mbps RJ45 Ports
		AUTO Negotiation/AUTO MDI/MDIX
LED indicators	10/100M/1000M	Link/Act
	Other	Power
Transfer Method		Store-and-Forward
Switching Capacity		16G
MAC Address Learning		Automatically learning
Dimensions (L × W × H)		1367424mm
Environment		Operating Temperature: 0℃~40℃
		Storage Temperature: -40℃~70℃
		Operating Humidity: 10%~90% non-condensing
		Storage humidity: 5%~90% non-condensing
