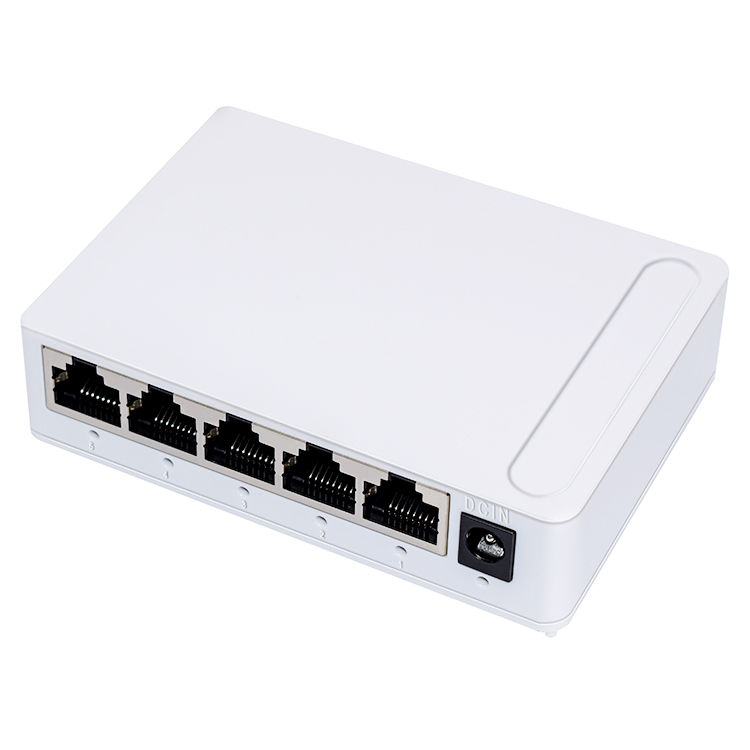

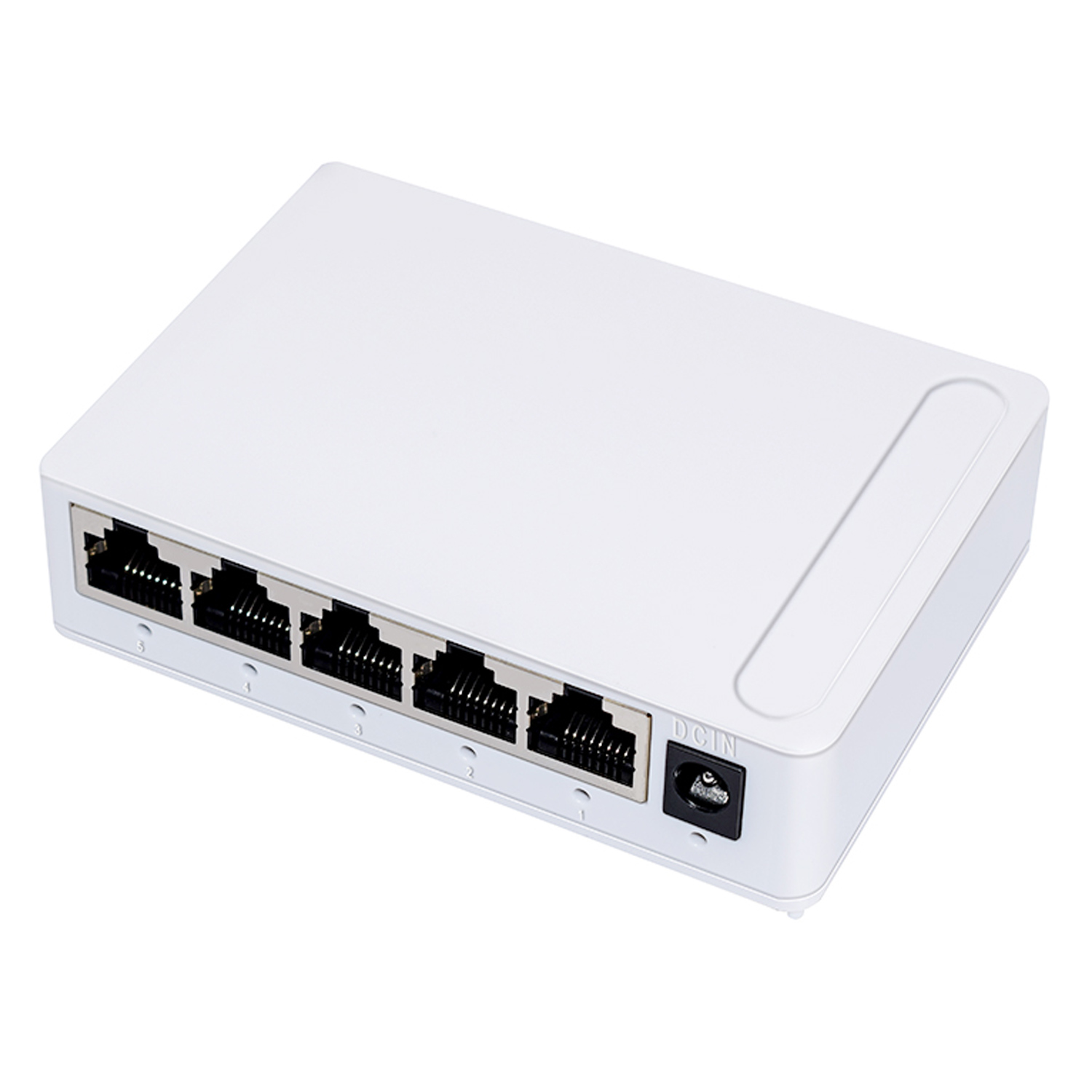

Network Switch

DLS-105TP
5 Ports 1000M Network Switch

●5 10/100/1000Mbps Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX.
●Supports IEEE 802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode.
●Supports MAC address auto-learning and auto-aging.
●Plastic housing and desktop design.
●Plug and Play design simplifies installation.
●Fanless design ensures quiet operation.

5 1000.png

Model		DLS-105TP
Chipset		RTL8367N-VB-CG
Standards		IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
Network Media (Cable)		10BASE-T: UTP category3,4,5 cable (maximum 100m) 100BASE-T: UTP category 5,5e cable (maximum 100m)
		1000BASE-T: UTP category 5e,6 cable (maximum 100m)
Number of Ports		5x 10/100/1000Mbps RJ45 Ports
		AUTO Negotiation/AUTO MDI/MDIX
LED indicators	10/100/1000M	Link/Act
	Other	Power
Transfer Method		Store-and-Forward
Switching Capacity		10G
MAC Address Learning		Automatically learning
Dimensions (L × W × H)		966924mm
Environment		Operating Temperature: 0℃~40℃
		Storage Temperature: -40℃~70℃
		Operating Humidity: 10%~90% non-condensing
		Storage humidity: 5%~90% non-condensing
