| Model No. | WGL-B2040H |

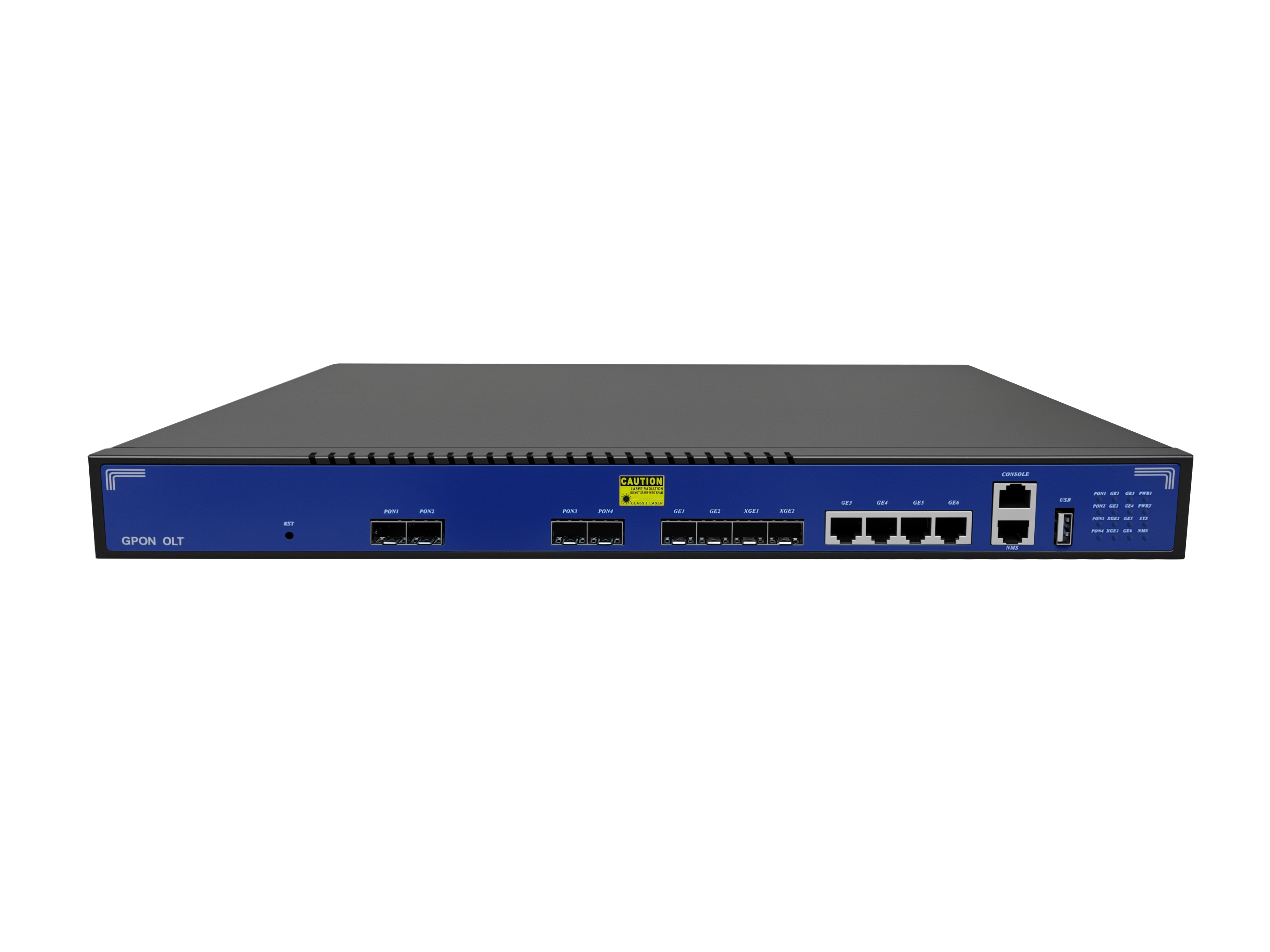

| Description | Optical Line Terminal(OLT) |
| Interface | 2*10GE SFP+ Uplink+ 2*GE ETH Uplink+4*GPON Port |
| Standard | GPON ITU-T G.984.x, G.988 |
| PON port spec | SFP Class C+/C++(Tx:1310nm, Rx:1490nm) Receiving sensitivity: ≤-30dBm(Saturation Optical -12dBm) Transmitting optical power: +3～+7dBm Transmission distance: 20KM. Max splitting ratio1:128 Upstream:2.488Gbps Downstream:1.244Gbps |
| Power Supply | 2*hot swap Redundancy Power Module(DC+DC, DC+AC,AC+AC) |
| Lay3 | Support static route, RIP v1/v2, OSFP v2, ARP proxy |
| Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port |
| Management Mode | SNMP, Telnet, CLI, WEB |
| VLAN | VLAN tag/un-tag,VLAN transparent transmission,VLAN translation and QinQ |
